Passive wireless
switch system.

No wires.
No batteries.
No limits.

* Sold exclusively at TLC Direct.

The World’s First Wireless Kinetic Energy Switch.

The Quinetic range offers an inspired solution in smart home technology.

With a press of the Quinetic Wireless Switch, enough kinetic energy is generated to create and transmit a radio signal to the Quinetic Wireless Controller which in turn, will switch lamps or other loads on or off.

There is no longer the constraint of wiring location and no need to install back boxes or cut holes into walls. The Quinetic switch can be installed or placed to maximise convenience.

No battery, no wiring to switches and no limits.

How It Works

Collection of Micro‑Mechanical Energy.

Micro energy acquisition (MEA) module constantly generates energy, thus eliminating the need for a battery power supply.

  1. Pressing finger

    Press with a finger to produce kinetic energy.

  2. Cog

    Internal module collects Kinetic energy.

  3. Energy conversion

    Kinetic energy is converted into electricity.

  4. Communication module

    Communication module transmits signal.

  5. Glowing light bulb

    Receiver controls the light.

Limitless Applications

The Quinetic Wireless Switch can be installed or placed nearly anywhere. Glass, marble, ceramic tile and other smooth surfaced flat walls such as normal lime walls and painted walls. The possibilities are endless.

Place the switch where it is most convenient for you or use it as a hand-held switch. Control hard to reach sockets using the socket adaptor.

Ideal for:

  • Lighting solutions.
  • Bathrooms / beside bathtub.
  • Kitchen & cabinet lighting.
  • Workshops & sheds.
  • Conservatories.
  • Assisted living.
  • Bedside switch.
  • Listed buildings.
  • Lofts, extensions & conversions.
  • Garden & garage lighting.
  • Adding additional switching points.

One receiver can be controlled by up to 10 switches. One switch can control an unlimited number of receivers.

Metal
Marble
Mosaic
Glass
Wood

Wireless Switch

loading spinner

Loading Images

Wireless Switch - 1 Gang, white Wireless Switch - 1 Gang, Silver Wireless Switch - 2 Gang, white Wireless Switch - 2 Gang, Silver Wireless Switch - 3 Gang, white Wireless Switch - 3 Gang, Silver Wireless Switch - Side, white Wireless Switch - Side, Silver
Description
Technical
Dimensions
Description

Innovation of Wireless Kinetic Technology.

The Quinetic wireless switch has a built-in micro energy generator. The action of pressing the switch generates enough kinetic energy to create and transmit a radio signal which in turn, will switch on/off via a receiver (wireless controller) lamps or other loads.

  • Place switches in convenient location.
  • Use with the socket adaptor to control hard to reach sockets .
  • Use as a hand-held switch.
  • Lighting control.
  • Ideal for use with floodlights.
  • Flexible to individual requirements.
Technical
  • Dimensions L86×W86×H14.5mm
  • Weight 85—110g
  • Power Source Self-powered
  • Communication FSK (under 1000 MHz)
  • Control Distance 30m indoor, 160m outdoor
  • Temperature Range -25—55ºC
  • Mechanical Life 60 years
  • Warranty 5 Years
  • Certificate CE KC PSE
  • Execution Standard EN 61058-1; 2002+A2; GB 14536. 1-2008
  • Control Method Pairing with either RF or Wifi Quinetic Wireless Controller
Dimensions
switch dimensions
Buy Now *

Key Fob

loading spinner

Loading Images

Wireless Pocket Fob Switch Wireless Pocket Fob Switch Wireless Pocket Fob Switch
Description
Technical
Dimensions
Description

The Quinetic wireless key fob is portable and very easy to use. It has a built-in micro energy generator. When the switch is pressed, the kinetic system transforms the movement into energy. This transmits a signal to the receiver to turn the lamp or other load on or off.

The key fob switch is portable and can be used from up to a maximum distance of of 25m indoors and 80m outdoors. There is no longer a need to install back boxes, make holes or channel out for switch lines in the wall. The key fob is flexible, convenient and extremely simple to connect and use.

Technical
  • Dimensions L48×W28×H15.5mm
  • Power Source Micro energy acquisition (self-powered)
  • Frequency 43Hz
  • Number of keys 1 (1 gang)
  • Weight 25g
  • Communication Model FSK
  • Control Distance 25m indoor, 80m outdoor
  • Temperature Range -30—55ºC
  • Life Time 200,000 times on/off
  • Control Method Pairing with either RF or Wifi Quinetic Wireless Controller
Dimensions
fob dimensions

Available to order soon.

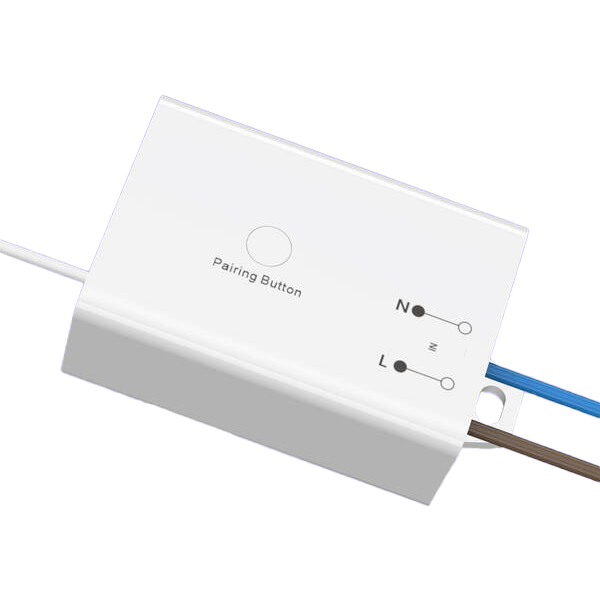

RF Receiving Controller

loading spinner

Loading Images

RF Receiving Controller
Description
Technical
Dimensions
Description

The Quinetic controller, with a high-efficiency switching power supply, has a wide voltage range with excellent stability and durability.

  • Safe with a replaceable fuse.
  • One switch can be paired with an unlimited number or controllers.
  • One controller can be paired with up to 10 switches.
  • Control distance: up to 30m indoors and 160m outdoors.

Waterproof box required if used outdoors.

Technical
  • Dimensions L43.7×W88.8×H30.9 mm
  • Weight 25g
  • Power Supply Type AC 85—260V, 50/60Hz
  • Voltage Range 85—260V
  • Sensitivity -116dB
  • Max Load 6A: 1100W / 10A: 2200W
  • Outer Shell Material DOW PC (fire) V–0
  • Communication FSK (under 1000 MHz)
  • Control Distance 30m indoor, 160m outdoor
  • Temperature Range -30—55ºC
  • Life Time 200,000 times on/off
  • Certificate CEL VD:SGS LVD GZES 1407007368LM
Dimensions
controller dimensions
Buy Now *

WiFi Receiving Controller

loading spinner

Loading Images

WiFi Receiving Controller
Description
Technical
Dimensions
Description

The Quinetic WiFi controller with a high-efficiency switching power supply has a wide voltage range with excellent stability and durability. It can be controlled by a Quinetic wireless switch or via the Kinetic Switch smartphone app (iPhone and Android) and is also compatible with Amazon Alexa. The WiFi receiving controller is equipped with an in-current suppression function thus creating a safe and durable product.

  • Safe with a replaceable fuse.
  • One switch can be paired with an unlimited number or controllers.
  • One controller can be paired with up to 10 switches.
  • Control distance: up to 30m indoors and up to 160m outdoors.

Waterproof box required if used outdoors.

Download the free controller app

Search for Kinetic Switch on the App Store or Google Play to download and install the controller app for your iOS or Android device.

Compatible with Amazon Alexa

The WiFi Quinetic receiver can be controlled by Amazon Alexa. Just enable “Smart Life”skill on the Alexa app and you can then discover the device in the Alexa app under “Smart Home”.

Technical
  • Dimensions L43.7×W88.8×H30.9mm
  • Weight 25g
  • Power Supply Type AC 85—260V, 50/60Hz
  • Voltage Range 85—260V
  • Sensitivity -116dB
  • Max Load 6A: 1100W / 10A: 2200W
  • Outer Shell Material DOW PC (fire) V–0
  • Communication FSK (under 1000 MHz)
  • Control Distance 30m indoor, 160m outdoor
  • Temperature Range -30—55 ºC
  • Life Time 200,000 times on/off
  • Certificate CEL VD:SGS LVD GZES 1407007368LM
Dimensions
controller dimensions

Available to order soon.

Socket Adaptor

loading spinner

Loading Images

Socket Adaptor
Description
Technical
Dimensions
Description

The Quinetic socket adaptor with a high-efficiency switching power supply has a wide voltage range with excellent stability and durability. Control with the Quinetic wireless switch range.

  • Simple and flexible installation.
  • Control hard to reach sockets.
  • Control distance: up to 20m indoors and up to 110m outdoors.
Technical
  • Dimensions L103×W62×H34.5mm
  • Power Supply Type AC85V—260V, 50/60Hz
  • Sensitivity 116dBb
  • Control Load 13A Fused
  • Max Load 1000W for LED lighting, 3000W for other loads
  • Outer Shell Material DOW PC (fire) V-0
  • Temperature Range -30—55ºC
  • Life Time 200,000 times on/off
  • Control Distance 20m indoor, 110m outdoor
  • Control Method Pairing with Quinetic Wireless Switch
Dimensions
socket adaptor dimensions
Buy Now *

WiFi Socket Adaptor

loading spinner

Loading Images

Wifi Socket Adaptor
Description
Technical
Dimensions
Description

The WiFi Quinetic socket adaptor, with a high-efficiency switching power supply, has a wide voltage range with excellent stability and durability. It can be controlled by a smartphone app (iPhone and Android) and has a load capacity of 13A. The WiFi wireless receiving controller is equipped with an in-rush current suppression function thus creating a safe and durable product.

  • Simple and flexible installation
  • Control hard to reach sockets
  • Control distance: up to 20m indoor

Download the free controller app

Search for Kinetic Switch on the App Store or Google Play to download and install the controller app for your iOS or Android device.

Compatible with Amazon Alexa

The WiFi Quinetic receiver can be controlled by Amazon Alexa. Just enable “Smart Life”skill on the Alexa app and you can then discover the device in the Alexa app under “Smart Home”.

Technical
  • Dimensions L103×W62×H34.5mm
  • Power Supply Type AC85V—260V, 50/60Hz
  • Sensitivity 116dBb
  • Control Load 13A Fused
  • Max Load 1000W for LED lighting, 3000W for other loads
  • Outer Shell Material DOW PC (fire) V-0
  • Temperature Range -30—55ºC
  • Life Time 200,000 times on/off
  • Control Distance 20m indoor
  • Control Method WiFi via smartphone app
Dimensions
socket adaptor dimensions

Available to order soon.

LED Ultra Slim Floodlight

loading spinner

Loading Images

LED Ultra Slim Floodlight LED Ultra Slim Floodlight LED Ultra Slim Floodlight
Description
Technical
Dimensions
Description

The new Quinetic Ultra Slim LED Floodlight comes with an integrated Quinetic controller that can be paired with the Quinetic wireless switches. A floodlight can be controlled by a maximum of 10 separate switches, and a switch can pair with an unlimited number of floodlights.

Applications include gardens, bushes/shrubs, security lighting, porch lighting, area floodlighting, factories, offices. The possibilities are endless.

  • Available in 10w, 30w & 50w.
  • Cool White or Warm White.
  • IP65 rated.
  • Not dimmable.
  • Complete with a built-in Quinetic receiver.
  • Shatter-resistant tempered glass.
  • Die-cast aluminium casing.
  • Includes adjustable bracket.
  • Comes pre-wired with 60cm length of rubberised cable.
  • Optional garden spike available.
Technical
  • Dimensions 130×90×34mm / 210×147×37mm / 260×182×41mm
  • Power 10W / 30W / 50W
  • Voltage 220—240V AC
  • CCT 3000—6500k
  • Lumens 700lm / 2450lm / 4000lm
  • Weight 0.36kg / 0.765kg / 1.6kg
  • Voltage Range 220—240V
  • Beam Angle 120°
  • Warranty 3 Years
  • Lumens 2450lm
  • Control Method Pairing with a Quinetic Wireless switch
Dimensions
floodlight dimensions
Buy Now *
