Recessed & Surface Mounted PIR
Description
Technical
Dimensions
Description
This ceiling-mounted, human motion infrared sensor can either be embedded in the ceiling or mounted on a flat surface, making installation flexible and versatile, and is powered by a CR123A battery (or can be wired for AC power).
When the sensor is paired with a wireless controller, a light source can be switched on by wireless control upon detection of a presence, and then switched off again once no presence is detected.
The sensor comes ready to be recess mounted- if the ceiling mounted version of the sensor is required, the sensor can be detached from the recessed base by pressing on the clips at both ends of the base.
This sensor solution is suitable for use in homes, classrooms, offices, warehouses, etc.
Technical
- Switch TypePIR Sensor
- Power Supply1 x CR123A Battery (included) or/and 200-240V/AC
- Battery LifeUp to 2 years (Red LED indicator for low battery)
- Communicating FrequencyRF 433Mhz
- Control Distanceup to 30m
- Weatherproof LevelIP20 (Indoor Use Only)
- Sensitivity Range (adjustable)up to Ø8m
- Lux Level (adjustable)10 - 2000lux
- Time Range (adjustable)3sec to 30min
- Operating Temperature-10°C ~ +50°C
- Installation Height2.4 to 3.6 m (8 to 12 feet)
- Detection Angle360°
- Coverage Area30m² (324ft²) to 62m² (676ft²)
- Installation MethodRecessed Installation (cut-out Ø75mm) or Surface Mounted
- Control MethodPairing with Quinetic Receiving Controllers
- Warranty3 Years

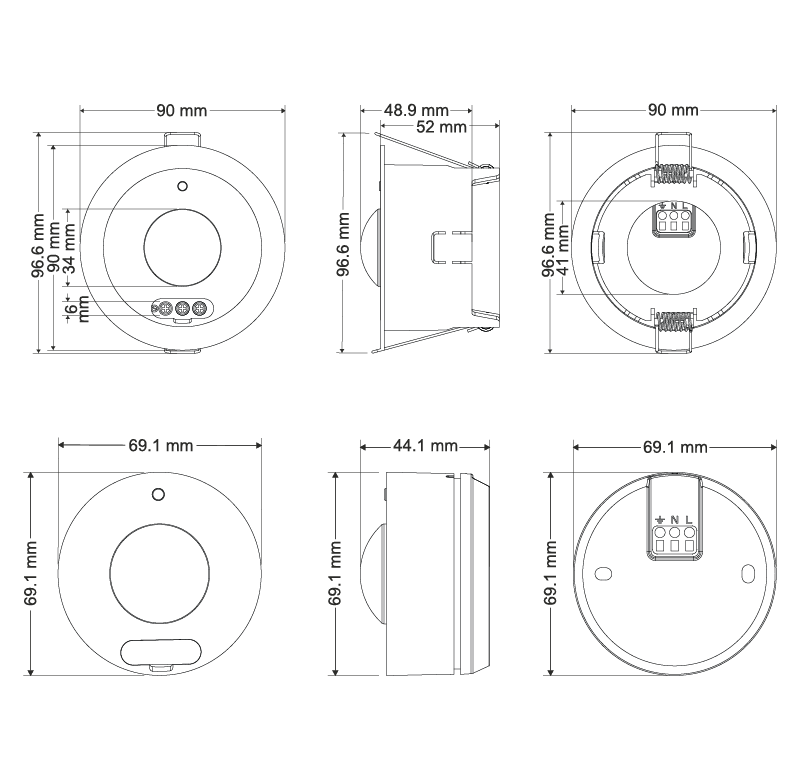

Dimensions
