PIR Internal & External
Description
Technical
Dimensions
Description

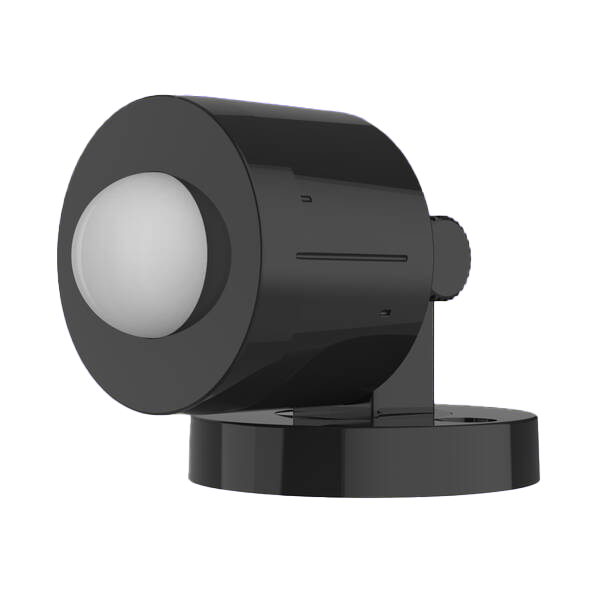

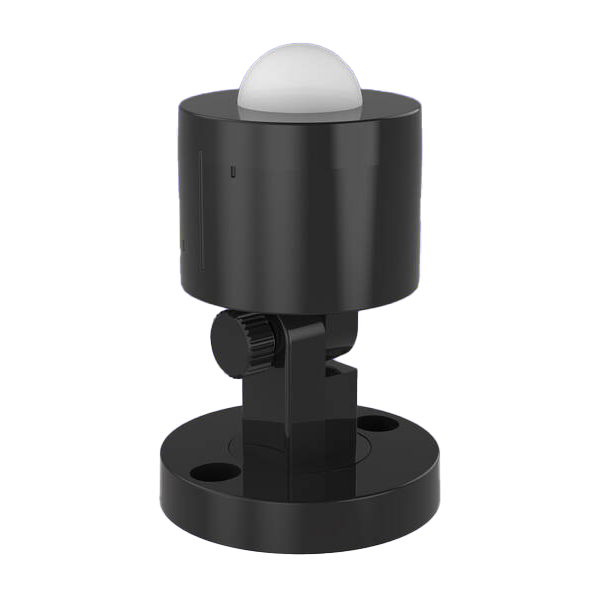

QUPIR can be paired with a Quinetic controller to automatically turn ON the lamp after the sensor senses the human body, and automatically turn OFF the lamp after the human body is not sensed.
The sensor has adjustable lux level, time and detection distance functions, and IP65 weatherproof capability (using the included IP65 Silicone cover).
It is suitable for indoor and outdoor use, where automatic control of the lights is needed.
Not compatible with LTQSF Quinetic Floodlights
Can be mounted at: 90°.
Battery Included (PB CR2450).
Technical
- Switch TypePIR Sensor
- Power Supply1 x CR2450 Battery (included)
- Battery LifeUp to 2 years (Red LED indicator for low battery)
- Communicating FrequencyRF 433Mhz
- Control Distanceup to 20m
- Weatherproof LevelIP65 (using included Silicone Cover)
- Sensitivity Range (adjustable)up to 10m indoor / 7m outdoor
- Lux Level (adjustable)30-3500lux
- Time Range (adjustable)3sec to 10min
- Operating Temperature-10 C ~ +45 C
- Working Humidity10% ~ 25%RH (No condensation)
- Detection Angle170
- Installation MethodFixed bracket (adjustable installation angle, 360 rotatable)
- Bracket Installation Method3M sticker or screw installation (included)
- Control MethodPairing with Quinetic controlling receiver
- Warranty3 Years (excluding battery)
Dimensions
