Wifi Mini Receiver

Description
Technical
Dimensions
Description

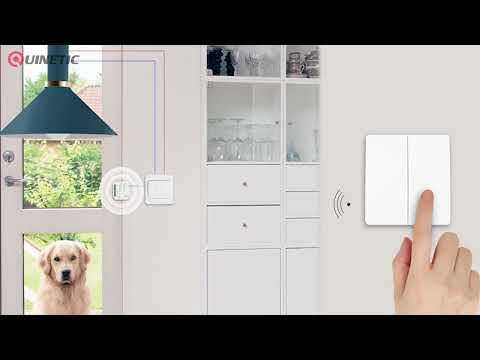

This MINI version of our larger controllers has been designed to fit in to places that others cannot. We have packed in some exciting features, such as the ability to connect standard switch lines, thus creating a hybrid between your existing wired light switch (which can remain in use) and the ability to connect all the other Quinetic switches with it.

It is also wifi enabled thus utilizing the SMARTLIFE APP you can add features such as dimming; voice control; timing control etc.

The Quinetic WiFi Mini receiver has a 1A capacity output the equivalent of 150 (LED) watts and is dimmable with the standard range of Quinetic switches. Like others in the range it can be paired with up to 10 wireless switches thus creating a wireless control system.

Download the free controller app

Search for Smart Life on the App Store or Google Play to download and install the controller app for your iOS or Android device.

Compatible with Amazon Alexa

The WiFi Quinetic receiver can be controlled by Amazon Alexa. Just enable “Smart Life” skill on the Alexa app and you can then discover the device in the Alexa app under “Smart Home”.

Technical
  • Operating VoltageAC 200V-240V 50/60Hz
  • Power Supply ModeLive and Neutral Cables
  • OutputSingle channel dimmable
  • Rated Current1A/Channel Dimmable (150W LED Maximum Load)
  • Protection LevelIP20
  • Communication WayRF 433MHz & WiFi 2.4G
  • ApplicationIntelligent Lighting Control
  • Operating Distance80m (Outdoors) / 25m (indoors)
  • ON/OFF Life= 30000 times
  • Standby Power Consumption<1W
  • Storage capacity10pcs wireless Quinetic switch information
  • Installation MethodMounted in the ceiling or wall
  • Wiring MethodTerminals
  • Product SizeL44 * W44 * H22mm
  • RF Receiving Sensitivity-110dBm
Dimensions
dimensions
